Snap Jackets: Concrete Piling Sleeves for Dock Piling Repair
The toughest, longest-lasting way to save a hollowed, warped or broken wooden dock piling, installed in place without pulling the piling or touching the dock above it.
- 5.0★ on Google · 335 reviews
- Licensed & insured
- $2,000,000 liability insurance
- 5.0★ on Google · 335 reviews
- Photos after every cleaning
- Monthly dive report: zinc % and bottom paint condition
- Licensed & insured · $2,000,000 liability

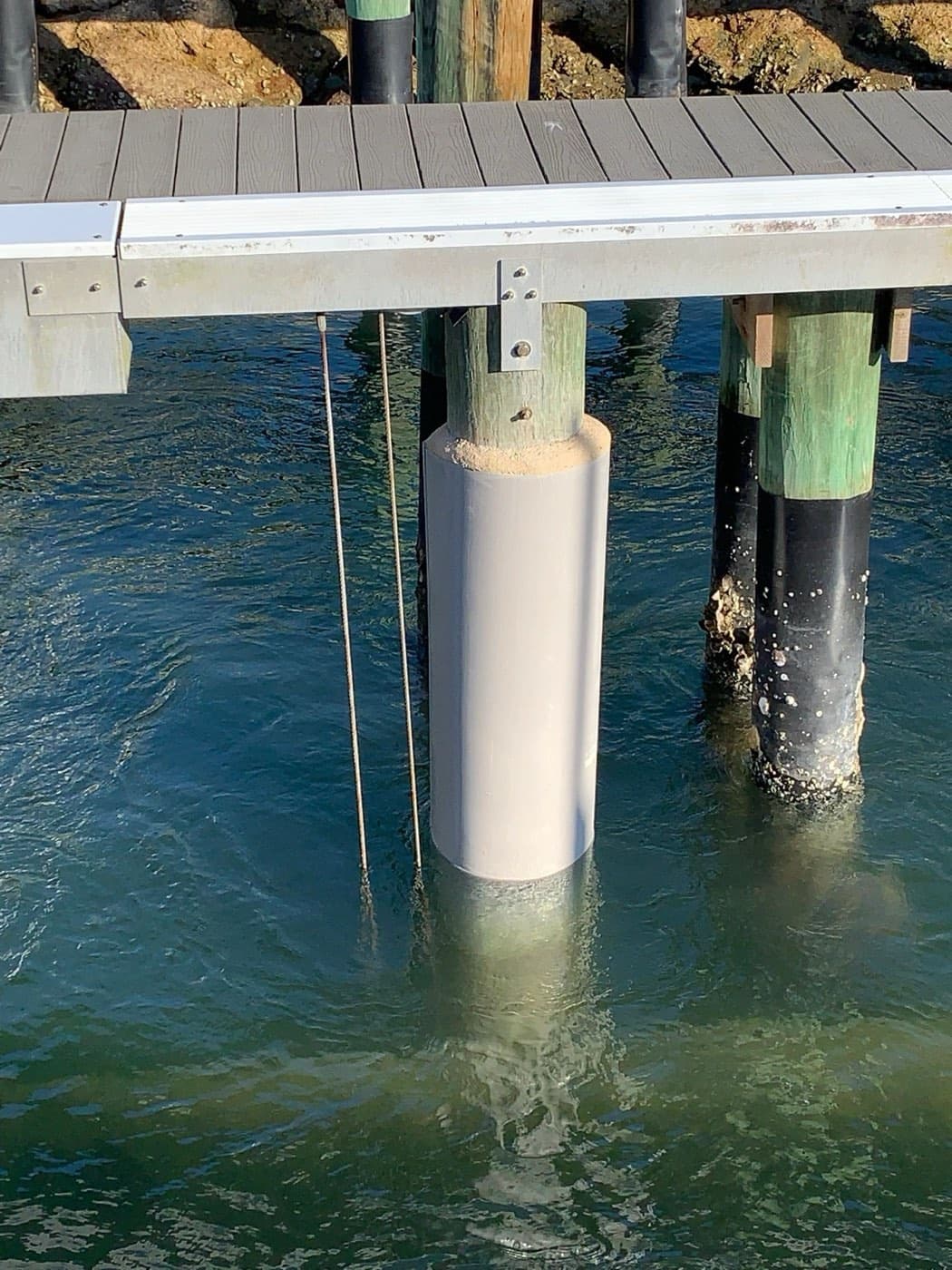

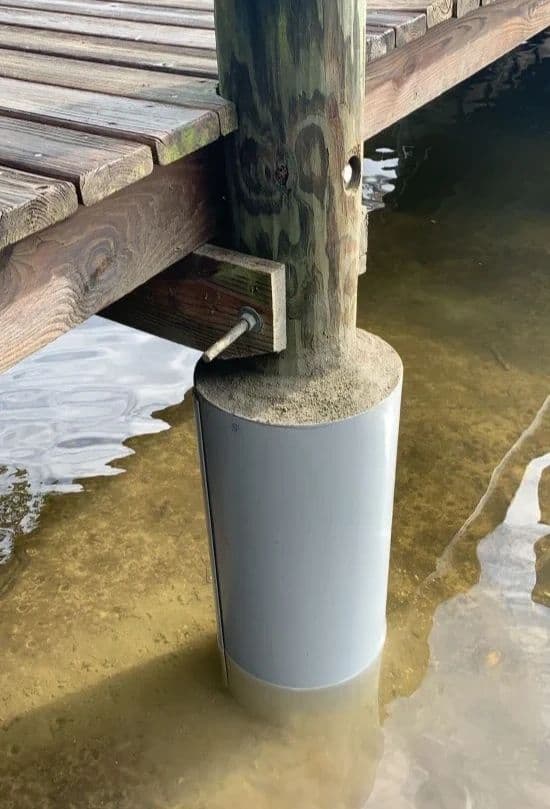

A cement sleeve poured around the piling you already have
Snap Jackets are the toughest and most long-lasting option we offer for wooden dock pilings that are past wrapping. The process is simple, which makes it cost-friendly compared with pulling and replacing pilings: the jacket is installed without removing any of the structure above the piling, with no barge, and your dock is protected for years to come.
Once the Snap Jacket is snapped around the piling and closed, the cement is poured in and every marine organism damaging the piling is immediately killed. The cement fills the void between the jacket and the piling and sets into a new sleeve around it. Snap Jackets work on slightly warped or hollowed pilings all the way to pilings that are completely separated, and once installed the piling ends up stronger than before.

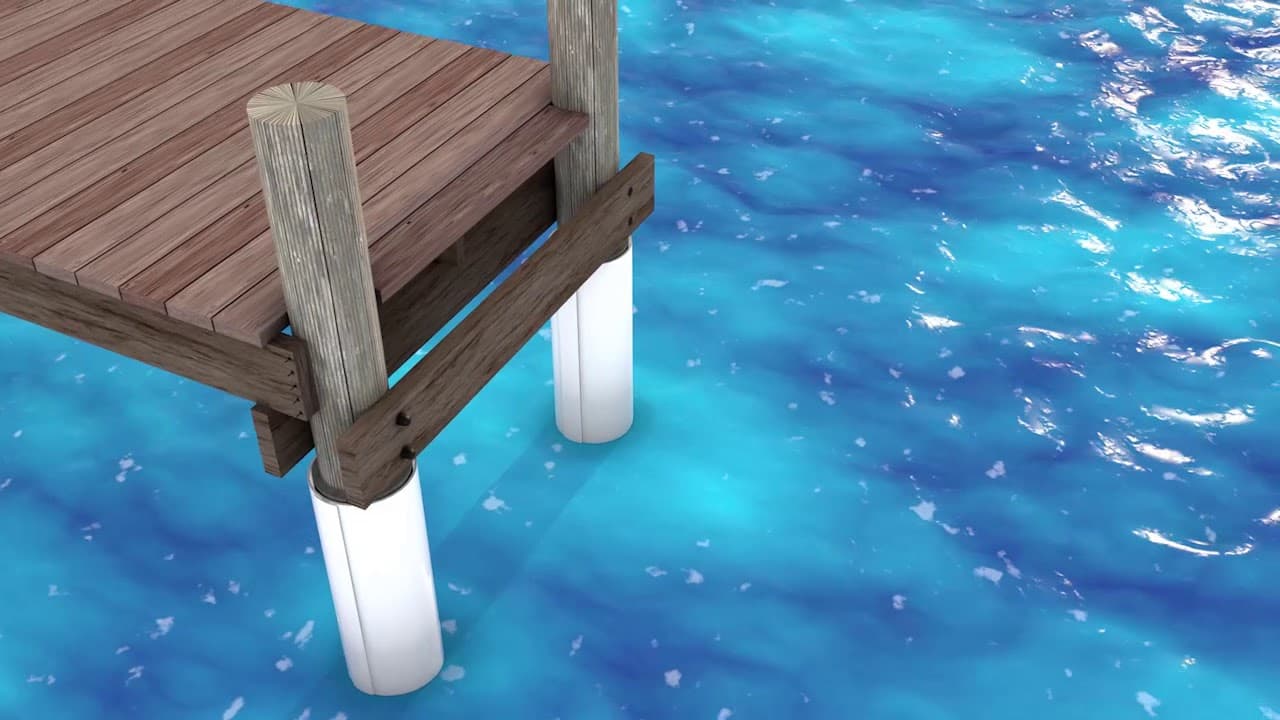

Not sure whether your pilings need a sleeve or a wrap? Our piling repair guide covers the screwdriver test and when each is right. Watch the 2-minute video for the installation process.
Why Snap Jackets
No barges, no dock demolition
Snap Jackets are installed in place, without removing any of the structure above the piling. Permit needs vary by city and county; we check what yours requires before the work is scheduled.
Cement poured in place
Once the jacket is snapped around the piling and closed, the void is filled with concrete, and every marine borer in the wood is killed.
A new sleeve around the piling
The concrete fills the space between the jacket and the piling and sets into a new sleeve. The manufacturer's warranty is 25 years.
Works on damaged pilings
From slightly warped or hollowed pilings all the way to pilings that are completely separated; the repaired piling ends up stronger than the original.
What a Snap Jacket is
From the manufacturer's specifications, so you know what goes around your piling.
UV-protected PVC jacket
Snaps around the existing pile and is cut to length on the dock; a locking strip slides down to close it.
Four diameters
10, 12, 14 and 16-inch jackets, chosen to leave at least an inch and a half of space around the pile for the concrete.
Sand blown out, concrete in
The annulus is cleared before the pour so the concrete bonds to the wood from the mudline up.
Restores strength
The manufacturer rates a jacketed piling, even a broken one, at more than its original strength once the concrete cures.
Installed Snap Jackets

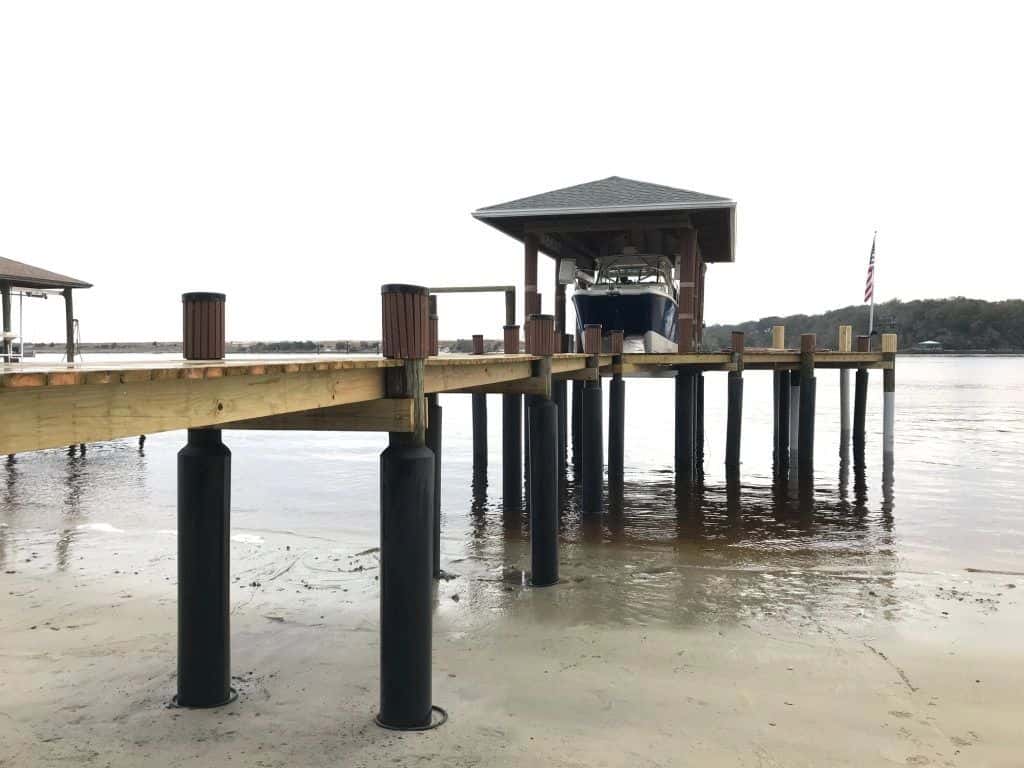

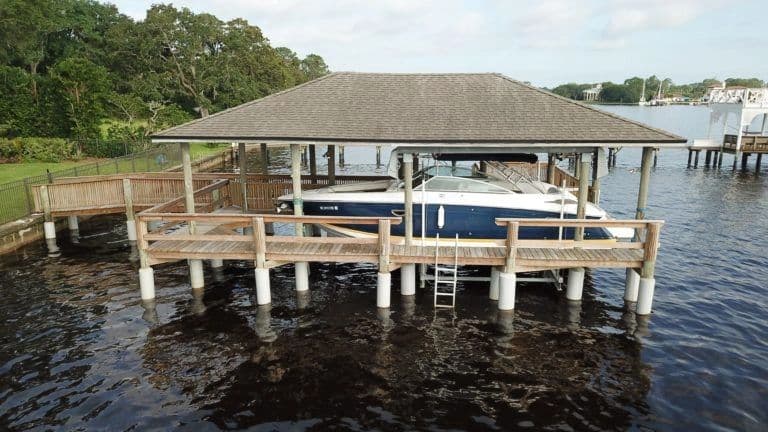

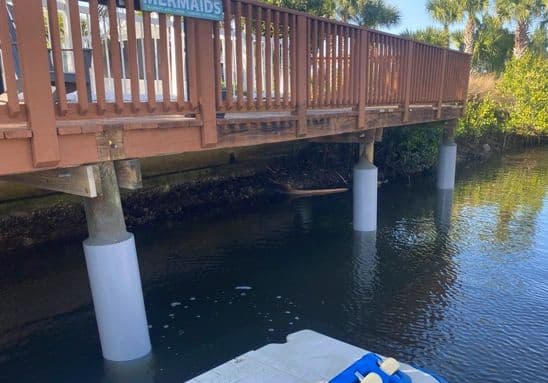

Snap Jacket installations on South Florida docks, boathouses and boardwalks.
Snap Jacket vs wrap vs replacement
Wrap a sound piling, sleeve a damaged one, replace only what nothing can save. The market figures show why the order matters.
Market ranges from public sources, not Barnacle Doctor prices.
| Piling repair option | Published market range |
|---|---|
| Snap Jacket, per piling installed | Around $500 (owner forum reports) |
| Replacement piling, driven | $1,000 to $3,000 per piling (forum and cost-guide reports); wood $20 to $40 per linear foot installed, concrete $50 to $80 |
| Piling wrap for a sound piling | $15 to $35 per linear foot; $90 to $420 per piling installed |
Market figures from owner forums and national cost guides (sources on the piling guide). These are not Barnacle Doctor prices; our Snap Jacket work is quoted on the number, size and condition of the pilings.
Send a few photos of the pilings at low tide and tell us how many there are. We will say which can be wrapped, which need a Snap Jacket and which, if any, are past saving.
Where we install them
Snap Jacket piling repair anywhere on the South Florida east coast, Miami to Jupiter. Dock and piling pages for the busiest waterfronts:
Licensed & insured: $2,000,000 liability insurance through Fisk Marine Insurance
Keeping the boat at a marina with vendor rules? Tell us where it is docked when you book. Our divers work from your dock or slip, and you do not need to be there; in a gated community they call ahead and send a text right before the visit.
Snap Jacket questions
Should I wrap my wooden pilings or use Snap Jackets?
Wrap sound pilings, sleeve worn ones. HDPE wraps with 316 stainless nails stop marine borers from the mud to 2 ft above high tide; Snap Jackets pour a new cement sleeve around a warped, damaged or separated piling without removing the dock, and the cement kills the organisms in the wood.
Get a Free Snap Jacket Quote
We respond fast. Tell us about your boat, dock or seawall and we'll get right back to you.
Save the pilings you have
Send the form or call for a free quote on Snap Jackets, wrapping and piling cleaning.
